ARC (MMA) INVERTERS

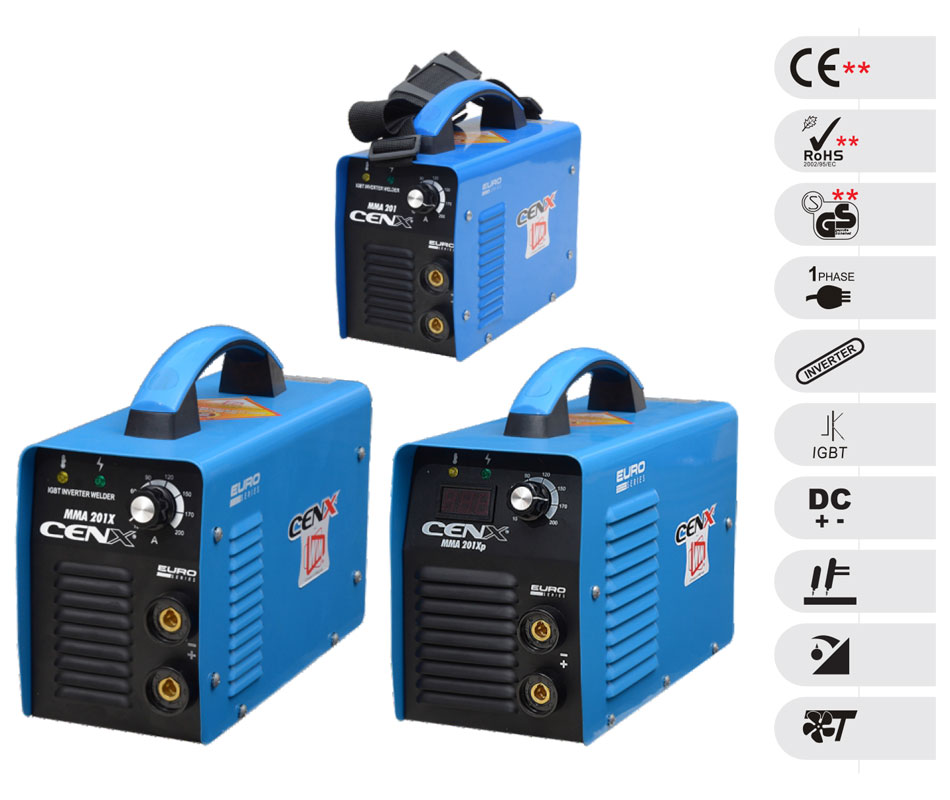

ARC (MMA) INVERTERS201 Range Professional - Models: 201/201x/201xp
SPECIFICATION
| Technical Specifications | 201 | 201X | 201Xp |
| Input Voltage (V) | 230 +/- 15% | 230 +/- 15% | 230 +/- 15% |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 |
| Rated Input Current (A) | 24 | 29 | 34 |
| No Load Voltage (V) | 70 | 70 | 70 |
| Output Current Range (A) | 10 - 140 | 10 - 160 | 10 - 180 |
| Output Voltage (V) | 28.2 | 28.2 | 28.2 |
| Duty Cycle (%) @ 40 Degree C | 35 | 35 | 35 |
| Efficiency (%) | 85 | 85 | 85 |
| Digital Display | No | No | Yes |
| Power Factor | 0.9 | 0.9 | 0.9 |
| Insulation Class | H | H | H |
| Protection Class | IP21S | IP21S | IP21S |
| Weight (Kgs.) | 4.5 | 5.5 | 6.5 |
| Dimension (mm) | 328 x 150 x 200 | 390 x 155 x 295 | 390 x 155 x 295 |
| Usable Electrode - MS 6013 - (mm) | 1.6 to 3.15 | 1.6 to 3.150 | 1.6 to 4.0 |
| Product Reference | MMA140KBC | MMA160KBC | MMA180KBCD |
| Product Code | JB16008 | JB161009 | JB161010 |
FEATURES
- Light and Compact
- Energy Efficient
- Stable Arc
- Deep Penetration
- Over Voltage and Over Current protection
- Suitable to weld all kinds of basic electrodes
- Suitable for Scratch TIG
WELDS
- Mild Steel
- Stainless Steel
- Cast Iron
- Cast Steel
