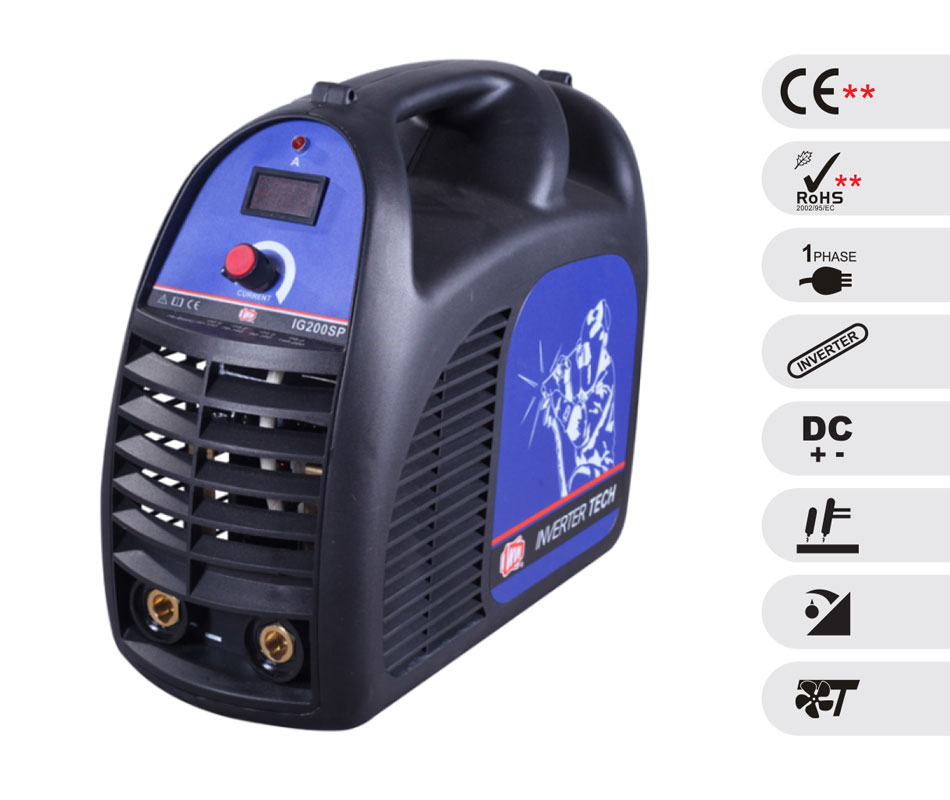

ARC (MMA) INVERTER

SP Range Medium Industrial - Model: IG 200SP

SPECIFICATION

Technical Characteristics IG 200 SP
Input Voltage (V) 220
Input Current (Amps.) 32
Frequency 50/60
Welding Current (Amps.) 20 - 200
Duty Cycle % 60
No Load Current (W) 25
Efficiency % 85
Power Factor 0.93
Insulation Class B
Cover Protection Class IP21S
Max. Usable Electrode Size (mm) 4
Weight (Kgs.) 7
Dimensions W x L x H (mm) 435 x 170 x 335

FEATURES

  • Heavy Duty and rugged
  • All weather design
  • Fan cooled Thermal protection
  • Smooth & consistent ARC
  • Suitable for all types of electrodes

WELDS

  • Mild Steel
  • Stainless Steel
  • Cast Iron
  • Aluminium
