ARC (MMA) INVERTERS

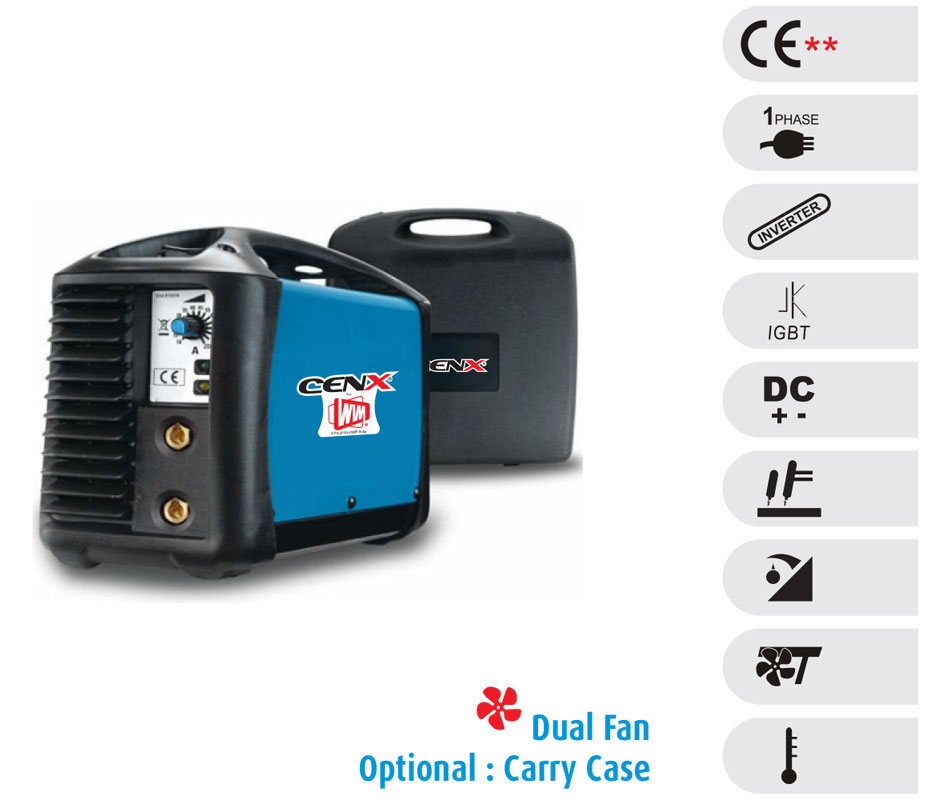

Economy Range Professional - Model: 200 Classic

SPECIFICATION

Technical Specifications 200 Classic
Input Voltage (V) 230 +/- 15%
Frequency (Hz) 50/60
Rated Input Current (A) 24
No Load Voltage (V) 70
Output Current Range (A) 10 - 160
Output Voltage (V) 28.2
Duty Cycle (%) @ 40 Degree C 60
Efficiency (%) 85
Digital Display No
Power Factor 0.9
Insulation Class H
Protection Class IP21S
Weight (Kgs.) 4.5
Dimension (mm) 328 x 150 x 200
Usable Electrode - MS 6013 - (mm) 1.6 to 3.15
Product Reference MMA160C
Product Code YK160C

FEATURES

  • Light and Compact
  • Energy Efficient
  • Stable Arc
  • Deep Penetration
  • Over Voltage and Over Current protection
  • Suitable to weld all kinds of basic electrodes
  • Some models suitable for Cellulose Electrode
  • Suitable for Scratch TIG

WELDS

  • Steel
  • Stainless Steel
