ARC (MMA) TRANSFORMERS

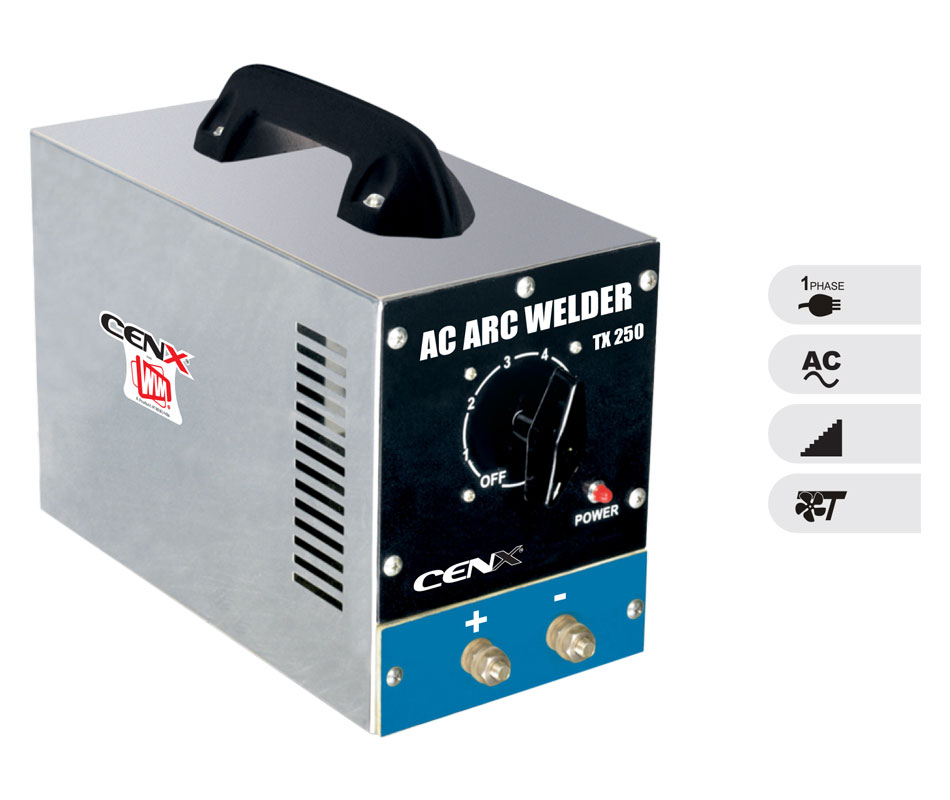

ARC (MMA) TRANSFORMERSTX Range Professional - Model: TX 200/250/300
SPECIFICATION
| Technical Specifications | TX 200 | TX 250 | TX 300 |
| Input Voltage (V) | 220/380 +/- 15% | 220/380 +/- 15% | 220/380 +/- 15% |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 |
| Rated Input Power (KvA) | 12.5 | 15 | 18 |
| No Load Voltage (V) | 55 | 55 | 55 |
| Output Current Range (A) | 80 -200 | 90 -250 | 90 -300 |
| Duty Cycle (%) | 20 | 20 | 20 |
| Efficiency (%) | 85 | 85 | 85 |
| Power Factor | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 |
| Insulation Class | F | F | F |
| Protection Class | IP21S | IP21S | IP21S |
| Weight (Kgs.) | 20 | 22 | 24 |
| Dimension (mm) | 455 x 210 x 330 | 455 x 210 x 330 | 455 x 210 x 330 |
| Usable Electrode - MS 6013 - (mm) | 2.5 to 3.15 | 2.5 to 4.0 | 2.5 to 5.0 |
| Product Reference | BX6-200B | BX6-250B | BX6-300B |
| Product Code | JB891062 | JB891063 | JB891071 |
FEATURES
- Stainless Steel Body
- Reliable Technology
- 7 Step Amps. Selection
- Stable arc and less spatter
- Continuous rating
- Welds all basic electrodes
WELDS
- Mild Steel
- Stainless Steel
