ARC (MMA) RECTIFIERS

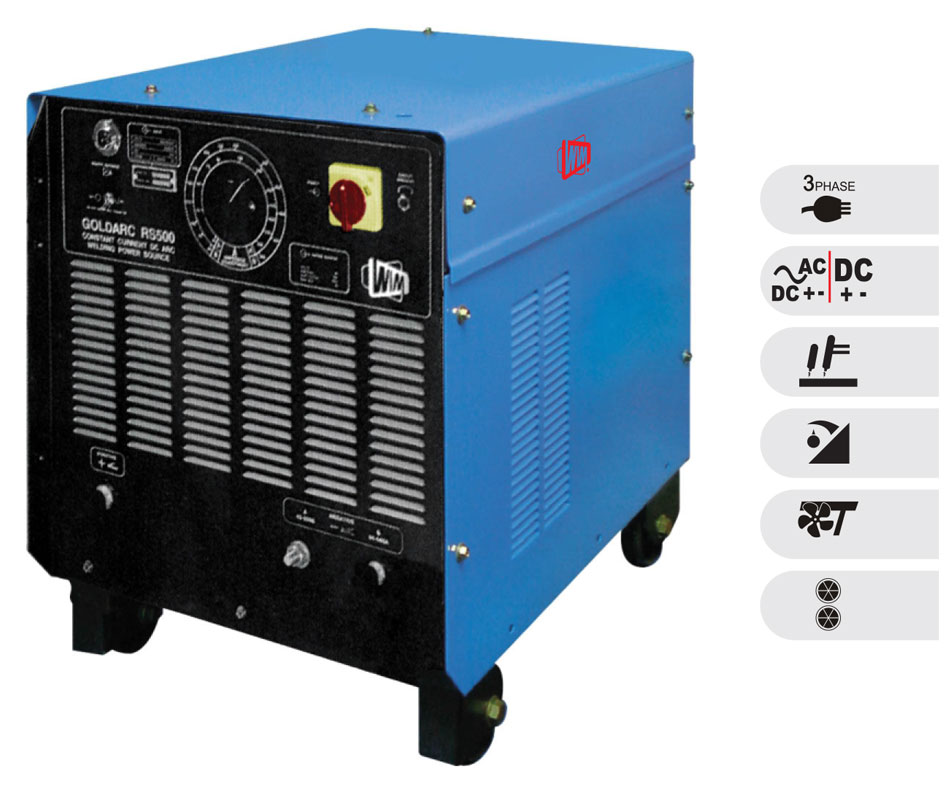

ARC (MMA) RECTIFIERSRheostat Range Heavy Industrial - Model: 250AC/DC & RS 500
SPECIFICATION
| Technical Characteristics | 250 AC/DC | RS 500 |
| Input Voltage (V) | 380 / 415 | 380 / 415 |
| Input Current (Amps.) | 38 | 45 |
| Frequency (Hz) | 50/60 | 50/60 |
| Welding Current (Amps.) | 38 - 275 | 45 - 450 |
| Open Circuit Voltage (V) | 71 | 75 |
| Duty Cycle % | 40 | 40 |
| Weight (Kgs.) | 180 | 350 |
| Dimensions W x L x H (mm) | 585 x 900 x 735 | 585 x 900 x 735 |
| RS - 500: Rheostat Control |
FEATURES
- Heavy duty and rugged
- All weather design
- Fan cooled Thermal protection
- Smooth & consistent ARC
- Suitable for all types of electrodes
WELDS
- Mild Steel
- Stainless Steel
- Aluminium
- Cast Iron
