SPOT & PROJECTION WELDERS

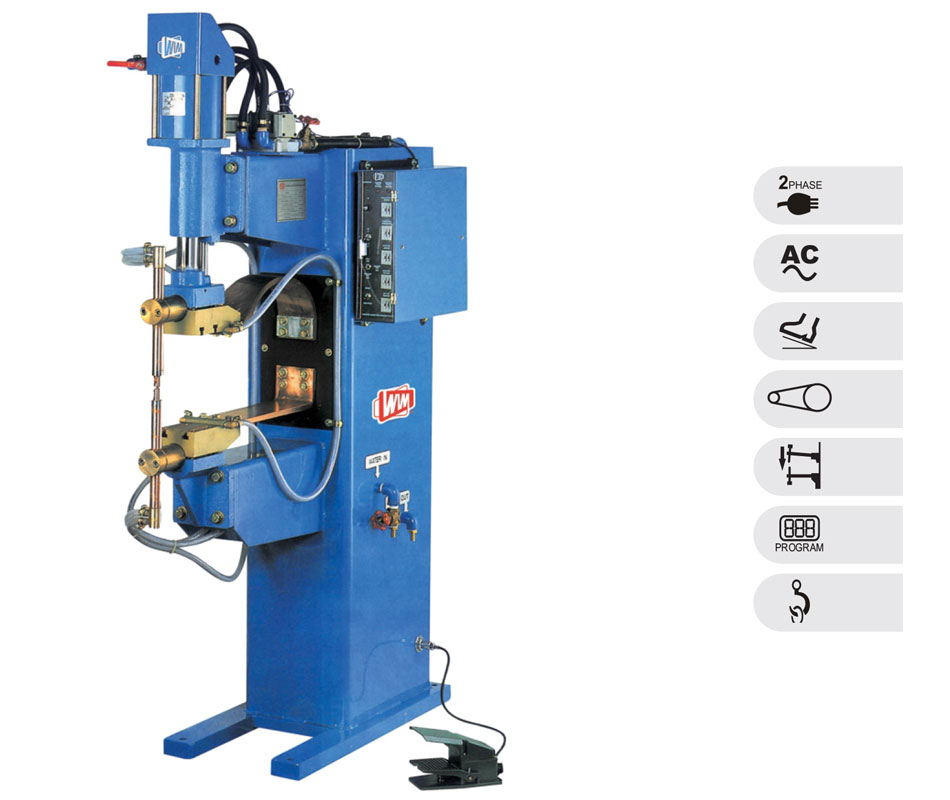

SPOT & PROJECTION WELDERSJPC Range Heavy Industrial - Models: JPC 35/50/75
SPECIFICATION
| Technical Characteristics | JPC 35 | JPC 50 | JPC 75 |
| Input Voltage (V) | 415 - 2 Phase | 415 - 2 Phase | 415 - 2 Phase |
| Input Current (KVA) | 85 | 125 | 200 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 |
| Rated Secondary Current (A) | 14000 | 16000 | 25000 |
| Duty Cycle % | 8.5 | 8.5 | 9.5 |
| Maximum Electrode Force (Kgs.) | 500 | 500 | 500 |
| Quantity of Cooling Water L/min | 6 | 6 | 13 |
| Insulation Class | B | B | B |
| Cover Protection Class | IP21S | IP21S | IP21S |
| Weight (Kgs.) | 310 | 310 | 380 |
| Dimensions W x L x H (mm) | 690 x 1170 x 1190 | 690 x 1170 x 1190 | 690 x 1390 x 1980 |
FEATURES
- Thyristor Controlled
- Efficient after cooling circuit
- Heavy Duty & Rugged
- Suitable for continuous usage
- Option: Electronic Timer
WELDS
- Steel
- Stainless Steel
